An Asse 1022 Dual Check Valve provides a compact way to support potable-water backflow protection where local code allows it. It helps prevent contaminants and corrosive substances, such as carbonic acid, from entering drinking water. Approved devices are essential for safeguarding potable supplies and following local and national codes.
Asse 1013
Manufacturers such as Watts produce backflow preventers that meet ASSE performance requirements and certifications. Depending on the model and application, approvals may include NSF/ANSI 61, UL, FM, or similar third-party listings. These credentials help confirm that materials will not leach harmful substances and that assemblies can withstand pressure and stress. While some jurisdictions require higher-protection assemblies, the Asse 1022 can serve as a reliable low-hazard option where allowed.
The Asse 1022 Dual Check Valve is valued for its small footprint, simple installation, and low maintenance costs. This guide explains how Asse 1022 devices compare with higher-protection standards such as Asse 1013. It also covers how to select, install, and maintain units to stay compliant with plumbing codes and industry recommendations.
Understanding Backflow And The Role Of Dual Check Valves
Backflow is a significant threat to water systems because it allows treated water to move backward. That backward flow may carry contaminants into potable lines and reduce the safety of drinking water. Water authorities and adopted plumbing codes require backflow protection to help prevent this kind of contamination.
Backflow usually happens because of one of two hydraulic conditions. Backsiphonage occurs when supply pressure falls, creating suction that can draw water in reverse. Backpressure happens when downstream pressure exceeds supply pressure and forces water in the wrong direction. Understanding backsiphonage versus backpressure is critical because each may require a specific prevention method.
Residential cross-connections often involve irrigation systems, garden hoses, boilers, and chemical injectors. Commercial facilities may also include booster pumps, closed-loop HVAC systems, process equipment, and similar connections. Without the right device, these connections may become pathways for pollutants or unwanted substances.
Dual check valves, including the Asse 1022 model, are designed for low-hazard protection. They help prevent contaminants that may affect taste or odor but are not considered a direct health risk. The Asse 1022 Backflow Preventer is a compact solution for many applications identified in plumbing codes.
Proper device selection and installation are guided by codes and standards. ASSE performance requirements and ANSI-accredited development support product acceptance. Installers should follow local plumbing-code language and relevant guidance, such as the 2018 UPC and AWWA M-14, when applying Asse 1022 devices.
Typical approved uses include residential irrigation, HVAC makeup lines, and some commercial low-hazard cross-connections. Where hazards are higher, more protective devices are required.
| Issue | Cause | Recommended Protection |
|---|---|---|
| Backsiphonage | Negative supply pressure caused by line breaks, mains work, or heavy demand | Approved Asse 1022 device where allowed, or an air gap for stricter protection |
| Backflow caused by pressure imbalance | Booster pumps, elevated tanks, or thermal expansion | Asse 1022 where low-hazard is approved, or RPZ where health hazards exist |
| Potable water contamination risk | Chemical injection, treated boiler water, irrigation additives, or industrial fluids | Evaluate the cross-connection and install the approved protection level |
How Backflow Occurs In Plumbing Systems
Backflow is the backward movement of water from any source into the public supply. It may be caused by negative supply pressure, backsiphonage, or excess downstream pressure. Either condition can allow contaminants to enter potable lines and threaten drinking-water quality.
Why Low-Hazard Systems Use Dual Check Valves
A dual check valve uses two separate check mechanisms inside a single valve body. This redundancy protects low-hazard cross-connections against reverse flow. Asse 1022 devices meet performance criteria for nuisance-level risks and are common where codes allow double-check assemblies.
Understanding The Asse 1022 Dual Check Valve

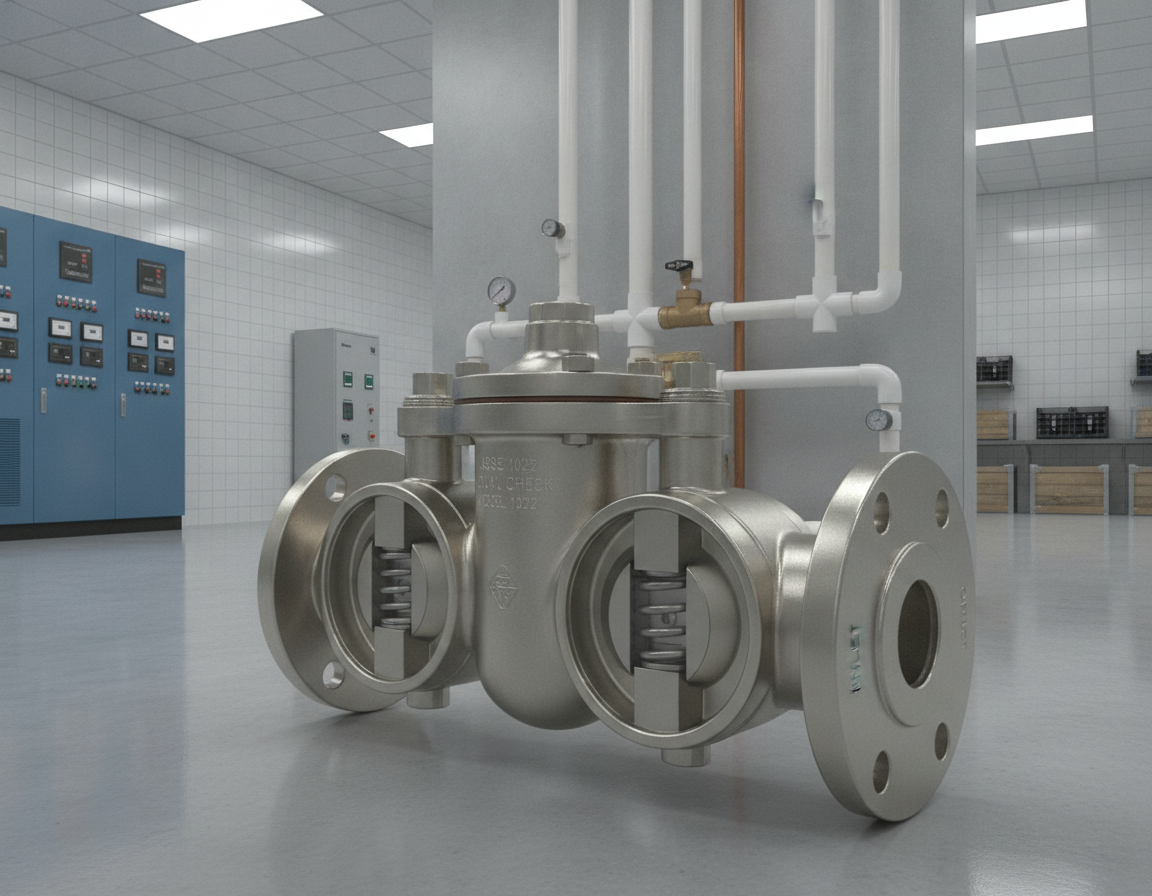

The Asse 1022 Dual Check Valve is a compact backflow device designed for low-hazard potable water protection. It features two independent, spring-loaded check valves in series. This arrangement prevents reverse flow and provides redundant sealing. It also supports serviceability while reducing contamination risk during pressure changes, brief backpressure events, or short disruptions.
Key Features And Functional Overview
Spring-loaded check mechanisms help the valve close positively when flow or pressure changes. Many models include serviceable internal parts and replaceable seats. This design reduces maintenance time and lifecycle costs.
Manufacturers offer units in several materials, including bronze, brass, corrosion-resistant metals, and engineered plastics. Sizes match standard pipe diameters and pressure ratings for municipal and commercial potable-water systems.
Compact bodies, service access, and built-in test ports can make installation and inspection faster. The Asse 1022 Backflow Preventer fits tight spaces where larger assemblies cannot. It meets flow requirements for typical low-hazard applications.
Standards And Certifications That Support ASSE 1022 Devices
ASSE standards define baseline performance tests, functional requirements, and operating thresholds. Those tests are used to verify dependable operation under defined conditions. Many listed products exceed minimum requirements, which may reduce failure risk and support longer maintenance intervals.
NSF/ANSI 61 certification helps confirm that wetted materials are suitable for drinking water and do not leach harmful contaminants. UL/FM approvals validate durability and performance under pressure and stress testing. These listings give engineers, inspectors, and installers additional assurance when specifying equipment.
Together with ANSI-accredited standards development, these approvals can improve acceptance of an Asse 1022 Dual Check Valve in specifications and code reviews. For teams that need verified material safety and tested performance, ASSE 1022 compliance, NSF/ANSI 61 certification, and UL/FM marks can form a strong compliance package.
ASSE 1022 Compared With ASSE 1013, ASSE 1012, And ASSE 1024
This outline compares common backflow protection options to help match device features with risk and code needs. It highlights practical differences between RPZ, double-check, and other dual-check devices used in the United States.
When choosing a device, begin with the hazard level. ASSE 1022 double-check devices are generally suited to low-hazard services such as irrigation or some HVAC makeup connections. In contrast, Asse 1013 RPZ devices are intended for high-hazard cross-connections where contamination could threaten health. Asse 1024 covers reduced-pressure principle devices for severe contamination scenarios. Asse 1012 may apply when local rules call for specific dual-check devices or service-line configurations.
ASSE 1022 Versus ASSE 1013 And ASSE 1024
ASSE 1022 double-check devices rely on two check valves, and where applicable shutoff valves, to control backflow in low-hazard uses. ASSE 1013 RPZ devices include a relief valve that vents to atmosphere when internal pressure drops, providing a higher safety margin. Asse 1024 reduced-pressure principle devices use the same relief concept but apply to a broader set of severe contamination risks.
Testing requirements and procedure complexity vary by device type. RPZ units under Asse 1013 require more rigorous annual and post-event testing with relief valve verification. Double-check assemblies under ASSE 1022 require periodic testing to confirm both checks operate, with simpler procedures than RPZ testing.
When ASSE 1012 Or Other Dual-Check Standards Apply
Asse 1012 covers requirements for selected dual-check configurations used in low- or moderate-hazard applications. Choose this standard when local code or the water authority allows a dual-check format but requires a recognized standard beyond ASSE 1022.
Code requirements differ from one jurisdiction to another. Many municipalities that follow the 2018 UPC require ASSE 1013 RPZ assemblies for high-hazard cross-connections. Utilities may allow ASSE 1022 for low-hazard applications or specify Asse 1012-certified dual-check devices for certain service-line uses. Always confirm requirements with the local water authority before installation.
| Device Feature | ASSE 1022 | ASSE 1013 RPZ | Asse 1024 | Asse 1012 |
|---|---|---|---|---|
| Main application | Low-hazard irrigation and selected HVAC makeup lines | High-hazard cross-connections and health-risk protection | Serious contamination threats requiring reduced-pressure protection | Dual-check configurations for specific service applications |
| Protection level | Low | High hazard | High-protection reduced-pressure level | Low or moderate hazard |
| Relief feature | Not included | Yes, required | Includes reduced-pressure relief valve | Usually no relief valve unless required |
| Testing approach | Periodic testing of both checks | Annual testing and relief valve verification | Regular testing with relief-valve checks | Inspection frequency set by local requirements |
| Common applications | Low-hazard cross-connections where allowed | Boiler makeup, chemical feed, and health-hazard connections | Severe contamination sources where health impact is possible | Specific service uses approved by local code or utility |
| Common code treatment | Permitted where local authority approves low-hazard use | Mandated for high-hazard by many water authorities | Required for serious contamination threats | Applied when the authority requires this dual-check standard |
For an ASSE 1022 comparison with RPZ units, consider both safety margin and testing needs. RPZ versus double-check decisions depend on hazard assessment, local code, and water authority rules. If requirements are uncertain, follow the higher protection level required by the authority having jurisdiction.
Installation Maintenance And Code Compliance
A correct Asse 1022 installation starts with careful planning. Place dual check valves in an easily accessible area and follow the manufacturer’s orientation guidelines. Leave adequate clearance for service access, testing ports, shutoffs, and unions. This lets certified testers access fittings without unnecessary disassembly.
Use sound piping practices so the installation does not create a new cross-connection risk. Avoid installing devices where downstream cross-connections could undermine the protection. Install shutoffs, unions, drains, and service fittings as required by the manufacturer and local code. Keep unions and test cocks accessible for inspections, service work, and backflow testing.
Maintenance schedules are set by local regulations and water authority directives. Many areas require annual inspections and backflow tests by certified professionals. Clear records of service, repairs, and test results help demonstrate compliance during audits, inspections, and permit reviews.
Certified testers provide documented evidence that satisfies most regulatory requirements. AWWA M-14 can be used as a reference for inspection, maintenance, and backflow-prevention practices. Following recognized guidance can help reduce downtime and identify wear before it becomes a leak or failure.
Choose devices with recognized listings to simplify approval. Products with ASSE approvals and NSF/ANSI 61 certifications are often easier for inspectors to accept. UL/FM compliance may also be important for commercial, industrial, or fire-protection connections that require third-party recognition.
Before installation, learn the applicable plumbing code edition and water authority rules in your area. Certain jurisdictions may require an RPZ rather than a dual check valve. Confirm the permit process and make sure the chosen Asse 1022 installation meets local standards to avoid delays and rework.
Establish a consistent record-keeping routine. Store manufacturer cut sheets, test certificates, and repair invoices with a map of the device location. This makes future inspections easier and supports clear compliance during regulatory reviews.
Where To Buy And Product Selection Guidance
Selecting the right device requires matching pipe size, pressure rating, material, and system demand. Confirm that the Asse 1022 Dual Check Valve matches the pipe diameter and peak-flow requirement. Also compare pressure ratings with maximum working pressure and expected surge conditions.
Material compatibility is a key consideration in potable-water systems. Use brass, bronze, or NSF/ANSI 61-certified plastics to reduce corrosion risk and avoid harmful leaching. Review the manufacturer’s chemical-resistance data for local water chemistry.
Verifying certifications can make approval and inspection easier. Make sure the product shows ASSE 1022 compliance and NSF/ANSI 61 certification where required. If local codes demand UL or FM approval, confirm those marks before purchase.
Supplier reputation matters when purchasing an ASSE 1022 device. Authorized dealers can provide genuine products, documentation, and warranty assistance. Installation Parts Supply is a reliable distributor that stocks certified units and can assist with model selection.
Warranty terms and pricing policies affect final cost. Review manufacturer warranty limits and any MAP rules that hide prices online. Some stores require cart checkout to reveal final pricing while preserving full warranty through authorized sales channels.
Material Selection Tips
- Select an Asse 1022 Dual Check Valve model that matches pipe size, flow rate, and installation layout.
- Use NSF/ANSI 61-certified components for potable-water systems whenever required or available.
- Check the Asse 1022 Backflow Preventer pressure rating and surge tolerance before installation.
Reliable Supplier Tips
- Purchase from certified or authorized dealers so documentation is available for inspections.
- Choose vendors that offer sizing support and warranty handling.
- Installation Parts Supply commonly offers certified stock and practical model-selection guidance.
| Selection Factor | Details to Confirm | Why It Helps |
|---|---|---|
| Sizing and flow demand | Pipe diameter, GPM requirements, model sizing chart | Prevents pressure loss and ensures proper operation |
| Material compatibility | Corrosion-resistant materials and potable-water certifications | Protects potable water quality and resists corrosion |
| Pressure Rating | Rated operating pressure plus expected surge tolerance | Supports safe operation during everyday use and pressure spikes |
| Approvals and listings | ASSE listing, NSF/ANSI 61, and UL/FM marks where needed | Helps inspectors approve the installation more easily |
| Supplier | Supplier reputation, product authenticity, and technical help | Ensures genuine Asse 1022 Backflow Preventer and post-sale support |
| Warranty terms and pricing rules | Coverage limits, pricing visibility, and replacement support | Prevents surprises and supports long-term ownership |
Summary
ASSE 1022 double-check valves can be dependable solutions for low-risk backflow prevention when approved by the local authority. An Asse 1022 Dual Check Valve uses two spring-loaded check mechanisms and approved materials that may meet NSF/ANSI 61 and ASSE requirements. This helps reduce contamination risks in irrigation and some HVAC makeup lines.
Correct device selection depends on hazard classification, code requirements, and water-authority approval. Use an Asse 1022 Backflow Preventer for low-hazard scenarios. For high-hazard protection, use ASSE 1013, ASSE 1024, or reduced-pressure assemblies. Proper selection streamlines permitting and improves water-system safety.
To ensure backflow prevention compliance, follow manufacturer guidelines and local plumbing codes. Where applicable, this may include the 2018 UPC, local amendments, and water authority rules. Purchase certified products from trusted suppliers. Verify ASSE, NSF/ANSI 61, and UL or FM listings for approvals and reliability.
Reliable backflow protection depends on correct selection, accurate installation, and routine maintenance. These steps, supported by certified devices and qualified testers, help safeguard potable water. They also support regulatory acceptance. Following these practices helps an Asse 1022 Dual Check Valve or other approved backflow solution perform reliably over time.
