Across many industries, stainless steel sanitary pipe fittings are critical for keeping process systems clean. These components, including ferrules, clamps, sanitary valves, and fittings, are designed to keep fluid paths clean. They minimize contamination risk while making cleaning, inspection, and maintenance easier.

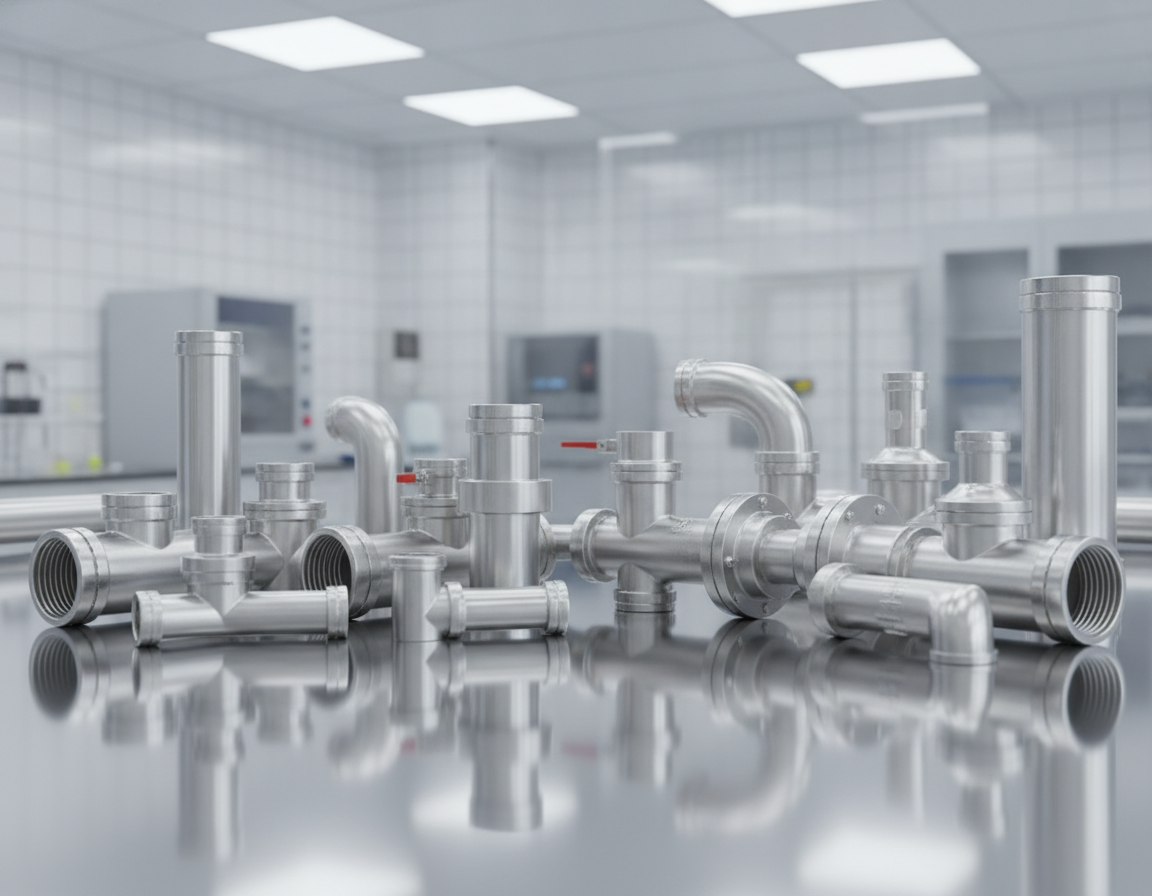

Sanitary Pipe Fittings Stainless
The choice of Hygienic Fittings and Ss Sanitary Fittings has a direct effect on product safety, system uptime, and adherence to regulations. Material grade, surface finish, and connection compatibility are key selection factors. They affect the ease with which a system can be validated and maintained.
Operations teams benefit from reliable suppliers and detailed catalogs when choosing the correct parts. Brands such as CSI and distributors like Installation Parts Supply publish useful purchasing information. They provide catalog listings, lead times, and customer reviews to guide purchasing decisions for Sanitary Valves And Fittings.
Essential Takeaways
- Stainless Steel Sanitary Pipe Fittings protect contamination control in clean process systems.
- Cleanability and corrosion resistance are influenced by material grade and surface finish.
- Compatible Hygienic Fittings minimize downtime during upgrades, changeovers, and maintenance.
- Supplier catalogs and reviews from CSI and Installation Parts Supply help with reliable sourcing.
- Choosing the right Sanitary Valves And Fittings protects product quality and regulatory compliance.
Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems: Overview
Clean-process systems need components made for hygiene, safety, and efficiency. A sanitary fitting must have smooth surfaces, tight seals, and easy cleaning access. These features are important for preventing contamination and supporting clean-in-place and sterilize-in-place routines.
Definition And Purpose Of Sanitary Fittings
Sanitary fittings, often called hygienic fittings, are designed to create crevice-free connections. That design helps prevent bacterial growth and helps maintain product purity during transfer and processing. Their design facilitates quick cleaning and minimizes cross-contamination risks.
Industries That Use Hygienic Fittings
Food processors use hygienic fittings to meet safety standards and reduce spoilage risk. Beverage manufacturers use these fittings to protect flavor, clarity, and shelf life. Pharmaceutical plants specify fittings that meet strict regulatory requirements.
Biotech facilities depend on precise sanitary connections for cell culture and fermentation. These industries prioritize traceability, repeatable cleaning, and material compatibility.
Why Stainless Steel Is Used In Sanitary Applications
Stainless steel is widely chosen because it delivers corrosion resistance, mechanical strength, and easy cleanability. Grades such as 304 and 316L can withstand cleaning chemicals, process fluids, and elevated temperatures. They also support surface finishes such as electropolishing and low Ra values.
Stainless components help minimize bacterial growth and extend service life during aggressive cleaning cycles. Tri Clover Sanitary Fittings and other standardized interfaces make easier the assembly and maintenance of robust hygienic systems.
Stainless Steel Sanitary Pipe Fittings Explained
In modern food, beverage, and pharmaceutical systems, stainless steel sanitary pipe fittings are critical. The right material, product type, and surface finish are key to reducing contamination risk and making cleaning easier. This guide will explain common grades, typical component families, and finish options for hygienic performance.
Common Materials And Grades Used
Type 304 stainless steel offers corrosion resistance and mechanical strength, making it suitable for many general processing lines. It is commonly used for tanks, structural supports, and areas where product-contact risk is lower.
Type 316L provides better resistance to chloride pitting and crevice corrosion. Pharmaceutical companies frequently choose 316L for wetted parts due to its low carbon content, which prevents sensitization during welding.
Matching stainless grades across components helps maintain corrosion resistance and reduce galvanic issues at connections. Specifying 304 or 316L at the design stage simplifies the procurement of SS Sanitary Fittings and associated parts.
Sanitary Fitting Product Types And Functions
Ferrules serve as the basic connection points for butt-weld and weld-in assemblies. They are typically available in 304 or 316L with polished internal diameters to match process piping requirements.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings ensure smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings link flexible lines and permanent pipe runs. Sanitary Valves And Fittings control flow while maintaining cleanable contours. Designing with compatible SS Sanitary Fittings helps lower leaks, downtime, and maintenance problems.
Surface Finish Importance For Cleanability
Surface roughness changes how residues adhere. A 32RA internal finish is a common spec that combines cost and cleanability for most food and beverage applications.
Electropolishing further improves the metal and enhances passivity. This treatment helps reduce microbial harborage and improves corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When components share 32RA or electropolished surfaces, cleaning validation becomes more repeatable.
| Component | Typical Material | Common Finish | Primary Use |
|---|---|---|---|
| Ferrules for welded assemblies | 304 stainless or 316L stainless | 32RA internal/external finish | Sanitary welded pipe ends |
| Two-piece clamps Tri-Clamp | 316L preferred | Polished or electropolished finish | Quick-release hygienic joints |
| Sanitary couplings and weld fittings | 304 / 316L | 32RA with optional electropolish | Permanent connections, elbows, and tees |
| Hygienic hose fittings | 316L common | Electropolished product-contact surfaces | Hose-to-pipe transfer connections |
| Sanitary valves and process fittings | 316L on wetted surfaces | Polished internal surfaces | Cleanable flow control in process lines |
Tri Clover Fittings, Tri-Clamp Fittings Catalog, And Triclover Fitting Options
Tri Clover Pipe Fittings adhere to strict dimensional standards, ensuring compatibility across manufacturers. Standards such as DIN 32676 and DIN 11864-3A define ferrule-face geometry and clamp interfaces. This helps ensure sanitary lines remain leak-free and easy to maintain. These standards simplify the selection of Triclover Fittings for food, beverage, and pharmaceutical applications.
When reviewing a Tri-Clamp Fittings Catalog, focus on size range, material grade, pressure ratings, and surface finish. Catalogs often list two-piece clamps from 0.25″ to 4″, including single-pin options and matching gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Important catalog items include clamps, ferrules, and gasket sets sized by inches or DN. Small two-piece clamps may start under ten dollars, while larger clamps often fall in the low double-digit range. Each Triclover Fitting entry should list OAL, ID/OD finish, and compatible gasket material. This helps ensure the correct part is selected when ordering.
For high-pressure applications, double-bolt or heavy-duty two-piece clamps are available. These clamps use a 304 stainless body with brass nuts, balancing strength and corrosion resistance. For critical process lines, choose high-pressure clamps by rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material influences both longevity and cleaning performance. 316L ferrules provide better chloride resistance in harsh or chemically aggressive environments. Make sure the Tri-Clamp Fittings Catalog lists ferrule metallurgy, clamp construction, and finish details. This supports the selection of Tri Clover Pipe Fittings based on process conditions and application requirements.
Spec sheets should include clamp size charts, ferrule dimensions, surface finishes, and part numbers to streamline procurement. A well-organized catalog enables quick replacement of Triclover Fittings, minimizing downtime. Seek suppliers that publish detailed specs for each Tri Clover Fitting to ensure interchangeability across brands.
CSI Sanitary Fittings Compatibility And Sanitary Connections
Sanitary connections are essential for joining pipes, valves, pumps, and equipment in clean systems. The correct joint type is important for maintaining cleanability, efficiency, and reliability. This section covers common connection styles, brand interchangeability, and supplier reliability feedback.
Common connection types include Tri-Clamp connections, butt-weld fittings, socket-weld fittings, threaded links, and sanitary hose fittings. Each style has different benefits for assembly speed, cleanability, and leak risk.
Clamp connections are popular because they assemble quickly and can be disassembled easily for cleaning. Welded joints, on the other hand, deliver the smoothest internal profile for cleaning-in-place CIP and sanitizing-in-place SIP processes. Threaded fittings are generally more suitable for low-risk or utility applications where product contact is not critical. Sanitary hose fittings need matched ferrules and a secure Sanitary Coupling to help prevent leaks.
Brand compatibility matters when components from multiple suppliers are mixed. CSI Sanitary Fittings and Csi Fittings follow common standards such as Tri-Clamp and DIN, which generally supports interchangeability with other manufacturers. Steel & O’Brien publishes specification sheets that help confirm compatibility with major Tri-Clamp systems when the standards match.
To confirm compatibility, match nominal size, sealing face, material grade, and surface finish. Verify standards such as DIN 32676 and DIN 11864 on datasheets. Mismatched finishes or grades can cause corrosion, leakage, or product-residue traps.
Customer reviews can provide practical insight into supplier reliability and fulfillment speed. Reviews for CSI often mention consistent part quality and fast shipping, with some buyers reporting next-day delivery on stock items. Other customers highlight responsive communication after order questions or technical inquiries.
When comparing suppliers, review lead times, documented quality, return policies, and after-sale support. Reliable shipping and clear specification sheets help reduce downtime and avoid costly returns when buying Sanitary Connections, CSI Sanitary Fittings, or Steel & O’Brien components.
| Sanitary Connection | Best Use | Cleaning Performance | Compatibility Notes |
|---|---|---|---|
| Clamp-style sanitary connection | Product-contact lines needing frequent disassembly | High cleanability with a removable gasketed seal | High when size and sealing face match; CSI fittings fit most brands |
| Butt-Weld / Socket-Weld | Fixed sanitary piping where cleanability is critical | Excellent after correct weld finishing and polishing | Cross-brand fit depends on matching standards and dimensions |
| Threaded | Non-product-contact lines, utilities | Lower cleanability where threads contact process fluids | Less common in product-contact lines; verify material and surface finish |
| Sanitary hose and ferrule connection | Flexible transfer lines and temporary connections | Good if ferrule and clamp are matched | Requires matching ferrule profile and Sanitary Coupling for leak-free fit |
Sanitary Pipe Fittings Stainless And SS Sanitary Fittings Selection Guide
Choosing the right sanitary components involves a few focused steps. This guide helps you match size, material, and finish to your process needs. Use the metrics and checks below to reduce downtime and ensure hygienic performance.
Start with size, designation, and connection standard. Confirm DN and TC markings, then verify DN-to-TC inch equivalents before ordering. Common catalog mappings include DN20, DN25, DN32, DN40, DN50, DN65, and DN100 matched to 0.25″–4″ Tri-Clamp sizes. Check mating surfaces, gasket groove styles, and flange faces to ensure compatibility.
Material selection is critical. For many food and beverage lines, 304 stainless meets strength, cleanability, and cost requirements. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Most suppliers list 316L ferrules and fittings as standard options for harsh environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify finish targets such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-sections and clamp pressure to avoid leaks.
Review process pressure and clamp type. Standard sanitary clamps handle many everyday sanitary services. High-pressure applications require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review catalog pressure ratings and choose clamps rated above operating pressure to provide a safety margin.
Consider Copper Tri Clamp Fittings for niche needs. Copper tri clamp fittings provide conductivity and antimicrobial benefits in select systems. Validate compatibility with cleaning agents, product chemistry, and dissimilar metal corrosion risks when pairing copper with stainless lines.
Final verification steps can save money and prevent ordering mistakes. Compare catalog part numbers against DN/TC inch equivalents, confirm grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, clamp pressure, and part numbers to streamline spare-parts ordering and maintenance.
Best Practices For Installing And Maintaining Sanitary Coupling And Sanitary Weld Fittings
Keeping sanitary connections clean and reliable is important in hygienic systems. Follow specific steps for assembling tri-clamp assemblies and welded joints to avoid leaks and contamination. Detailed records of materials, finishes, torque values, and maintenance are important for traceability and audits.
Best-practice assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces and make sure the sealing surfaces are properly aligned. Next, fit the clamp and tighten by hand, then apply the specified torque with a calibrated wrench. For high-pressure applications, use double-bolt clamps with suitable hardware and follow recommended torque values to avoid over-compression.
Guidance for Sanitary Weld Fittings
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas purging to reduce oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Regular sanitary maintenance
Run CIP and SIP cycles according to process requirements. Inspect ferrule faces, clamps, and gaskets after thermal cycles, production runs, and scheduled cleaning. Replace gaskets if they show signs of hardening, extrusion, or permanent deformation. After each maintenance activity, verify clamp torque, gasket seating, and alignment.
Troubleshooting frequent sanitary fitting issues
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can cause uneven compression and create leaks. To fix, loosen, realign, and retighten to the specified torque. For gasket extrusion or failure, confirm the correct gasket material and durometer, and verify that groove dimensions match ferrule specifications.
Addressing surface damage
Surface damage such as scratches, pits, or crevice corrosion can trap microorganisms and residues. Minor scratches can be polished out and then electropolished to restore the Ra levels. Replace components if pitting penetrates the surface or if repair polishing would remove too much material.
Recordkeeping and documentation
Maintain detailed records of material grades, surface finishes, gasket materials, clamp models, torque values, and service dates. Keep calibration records for torque tools, welding equipment, and inspection instruments. Accurate records help with regulatory compliance and expedite troubleshooting efforts.
| Maintenance Task | Interval | Main Step | Notes |
|---|---|---|---|
| Sanitary clamp torque verification | After assembly, then monthly | Verify with a calibrated torque wrench | Reference the correct torque table for each coupling size |
| Gasket condition check | At scheduled intervals or whenever defects appear | Look for damage, compression set, or extrusion | Replace only with compatible gasket material |
| Surface finish inspection | After weld work and during quarterly checks | Check Ra values and look for surface defects | Electropolish or refinish if Ra exceeds hygienic specification |
| Weld profile inspection | After installation and during annual review | Check for undercut, porosity, discoloration, and profile | Repair, polish, and revalidate Sanitary Weld Fittings as required |
| CIP and SIP validation | According to each cleaning or sterilization cycle | Monitor time, temperature, concentration | Keep records for traceability and audits |
Where To Buy Sanitary Fittings: Catalogs, CSI Fittings, And Installation Parts Supply
A detailed catalog review is a key first step. Look for a Sanitary Fittings Catalog that lists material grade, finish, and pressure rating. It should also reference standards such as DIN 32676 or DIN 11864-3A. Confirm item codes and stock status before ordering to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, compare clamp type, gasket compatibility, dimensional specifications, and material grade. Check whether ferrules and fittings are finished to 32RA, electropolished, or another required specification. A detailed catalog makes gasket and clamp matching easier during assembly and maintenance.
Check Csi Fittings performance by reading independent reviews and supplier lead times. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms for precision components to protect tight-tolerance projects.
Use the following example listing to gauge market pricing and common stocking sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Product | Listed Size | Material Grade | Finish | Typical Catalog Price |
|---|---|---|---|---|
| Single-pin two-piece clamp | 0.25″ to 0.75″ | 304 | Standard finish | 3.91 USD |
| Two-piece single-pin sanitary clamp | 1 inch | 304 stainless | Standard | Approx. $4.91 |
| Two-piece single-pin sanitary clamp | 2″ | 304 | Standard | $5.99 |
| Two-piece single-pin clamp | 2.5 inch | 304 | Standard catalog finish | Approx. $6.93 |
| Single-pin two-piece clamp | 3 inch | Type 304 stainless steel | Standard finish | 7.54 USD |
| Two-piece single-pin sanitary clamp | 4 inch | 304 stainless | Standard catalog finish | Approx. $9.16 |
| Tri-Clamp ferrule | 2″ size, 1.125″ overall length | 316L stainless | 32RA ID/OD | Approx. $4.24 |
| TC sanitary ferrule | 2″ — 1.125″ OAL | 304 | 32RA internal and external finish | Approx. $4.06 |
| TC sanitary ferrule | 3″ | Type 316L stainless steel | 32RA internal and external finish | $6.15 |
| Double-bolt high-pressure clamp | 1.5″ | Type 316 stainless steel | Polished finish | Approx. $12.93 |
| High-pressure sanitary clamp | Two-inch size | 316 stainless | Polished | $14.62 |
| High-pressure sanitary clamp | Three-inch size | 316 stainless | Polished finish | $20.26 |
Installation Parts Supply is a U.S.-based supplier for sanitary valves, ferrules, clamps, and related process parts. Use their online listings to check availability, finishes, and exact pricing for specific Tri-Clamp Fittings Catalog items. Before purchasing, review product pages to cross-check pressure ratings, gasket materials, and fitting compatibility.
When sourcing parts, prioritize catalogs that clearly separate 304 from 316L, state surface finish, and cite applicable standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Conclusion
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in food, beverage, pharmaceutical, biotech, and other hygienic industries. The choice between 304 and 316L materials, along with surface finishes like 32RA or electropolishing, supports cleanability. This reduces contamination risks significantly. Ensuring that Tri Clover Fittings and other components meet standards like DIN 32676 is vital for tight Sanitary Connections and easy interchangeability.
When choosing fittings, evaluate material grade, surface finish, connection type, and pressure needs. Connection choices may include Tri-Clamp, weld, hose, or threaded fittings depending on pressure, product contact, cleaning requirements, and regulations. High-pressure clamps should be used where necessary. Consistency in gaskets, clamps, and ferrules prevents leaks and simplifies maintenance. Proper installation and regular cleaning increase the lifespan of fittings and ensure compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When looking for where to buy sanitary fittings, prioritize reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and trusted sources limit downtime. This preserves product quality in hygienic processing environments.
